Data Processing
Min. speed of detected targets – 10 km/h Max. speed of detected targets – 1200 km/h
Radar
'Panorama'
Small-size AESA acquisition and tracking radar.
The radar post provides capability to allocate detected targets to optronic guidance systems and to perform continuous monitoring in detection/air target tracking mode.
In heights from 5 m to 5 km.
up to 20 km
Detection range
- • Detection of air targets with RCS from 0.001 m²
- • Accuracy of detection in azimuth not less than 0.3°
- • Detection zone: 360° in azimuth and -25° / +65° in elevation
50 targets
Simultaneous tracking
Tracking up to 50 targets simultaneously by one RDR in all-round and sector modes with automatic output of coordinates and data records, target flight characteristics to optronic systems.
Target detection range:
- Detection of target type at distances up to 8-15 km
- Dji Mavic — up to 8 km
- Agrodrone — up to 15 km
- up to 20-40 km
- 'Lyutiy'-type fixed wing UAV — 20 km
STATIONARY RADAR STATION COMPOSITION
Compact radar station «Panorama»
Compact radar station for detection and tracking of aerial targets based on active phased-array antenna technology.
Threat Analysis
Output of data on detected target position in relative and geographic coordinates. Target track initiation.
Operating Modes:
All-round surveillance Sector surveillance (electronic scanning at high rate of updating target information)
Product variants C-UAS
The C-UAS is available in various configurations depending on the characteristics of the protected facility.
Stationary system
Equipment and control post are housed in protected premises, operating continuously.

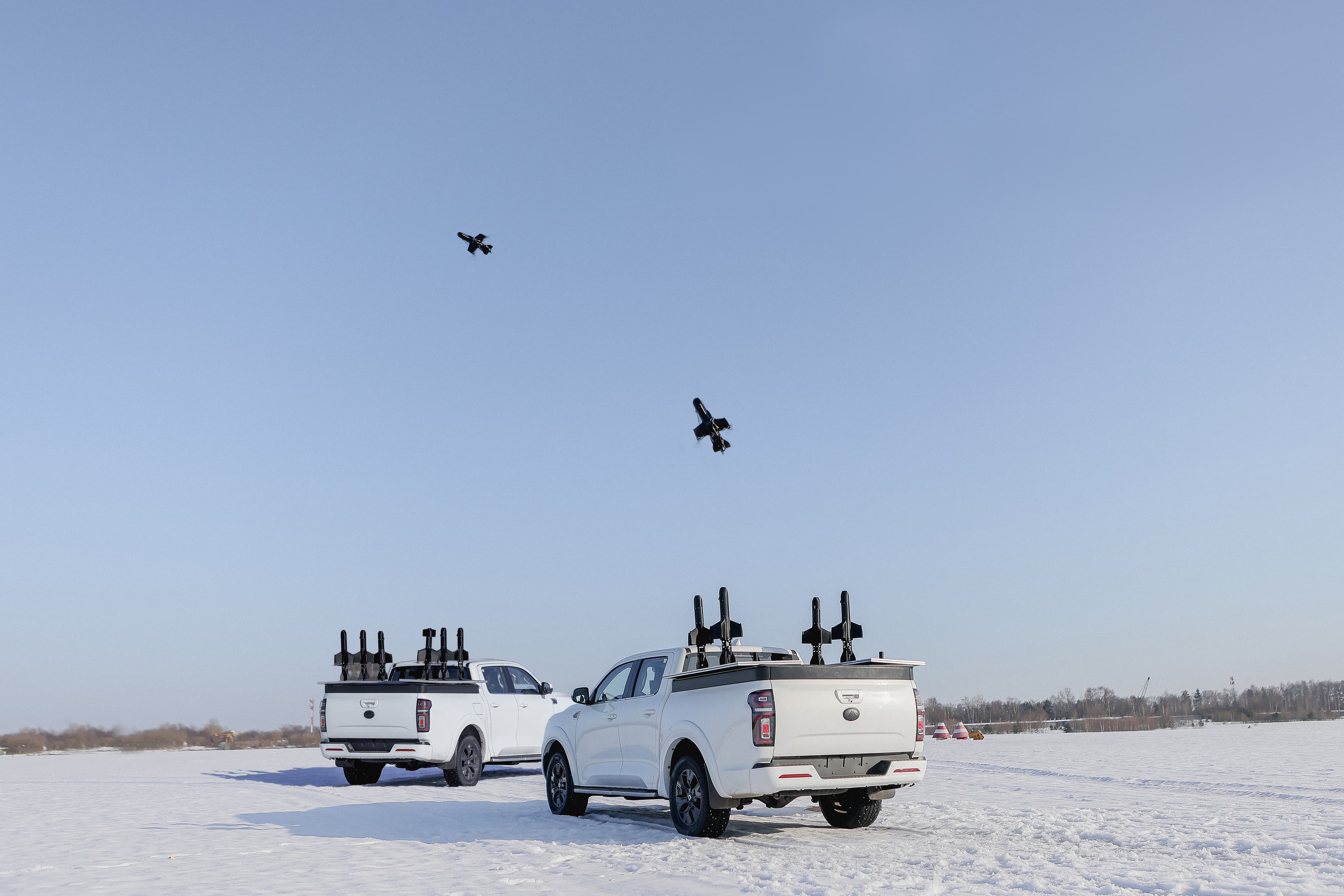

Mobile system
It provides rapid relocation, deployment, and closure. It provides capability to rapidly respond to changes in the air situation, including contingencies.
Combined system
It provides layered defense, overlapping areas of responsibility, and the ability to build up assets around specific facility.
Depending on the features of the protected facility, 'Arkan-RBT' C-UAS can be stationary, mobile or combined system.
MoreMobile radar post
Mobile radar post
Mobile acquisition and tracking system with ‘Panorama’ AESA radar.
The CP provides capabilty to simultaneously operate 2-3 acquisition radars and up to 10 optronic systems. Depending on the size and area of the protected facility, the control post can be positioned in the assigned sector/area and operate jointly with similar adjacent systems.
up to 20 km
Communication range
Networked data exchange using InfiMAN equipment (PTMP) up to 20 km, maximum throughput up to 670 Mbps.
50 targets
Simultaneous tracking
Tracking up to 50 targets simultaneously by one RDR in all-round and sector modes with automatic output of coordinates and data records, target flight characteristics to optronic systems.
Target detection range:
- Detection of target type at distances up to 8-15 km
- Dji Mavic — up to 8 km
- Agrodrone — up to 15 km
- up to 20-40 km
- 'Lyutiy'-type fixed wing UAV — 20 km
MOBILE POST WITH RADAR «PANORAMA» COMPOSITION

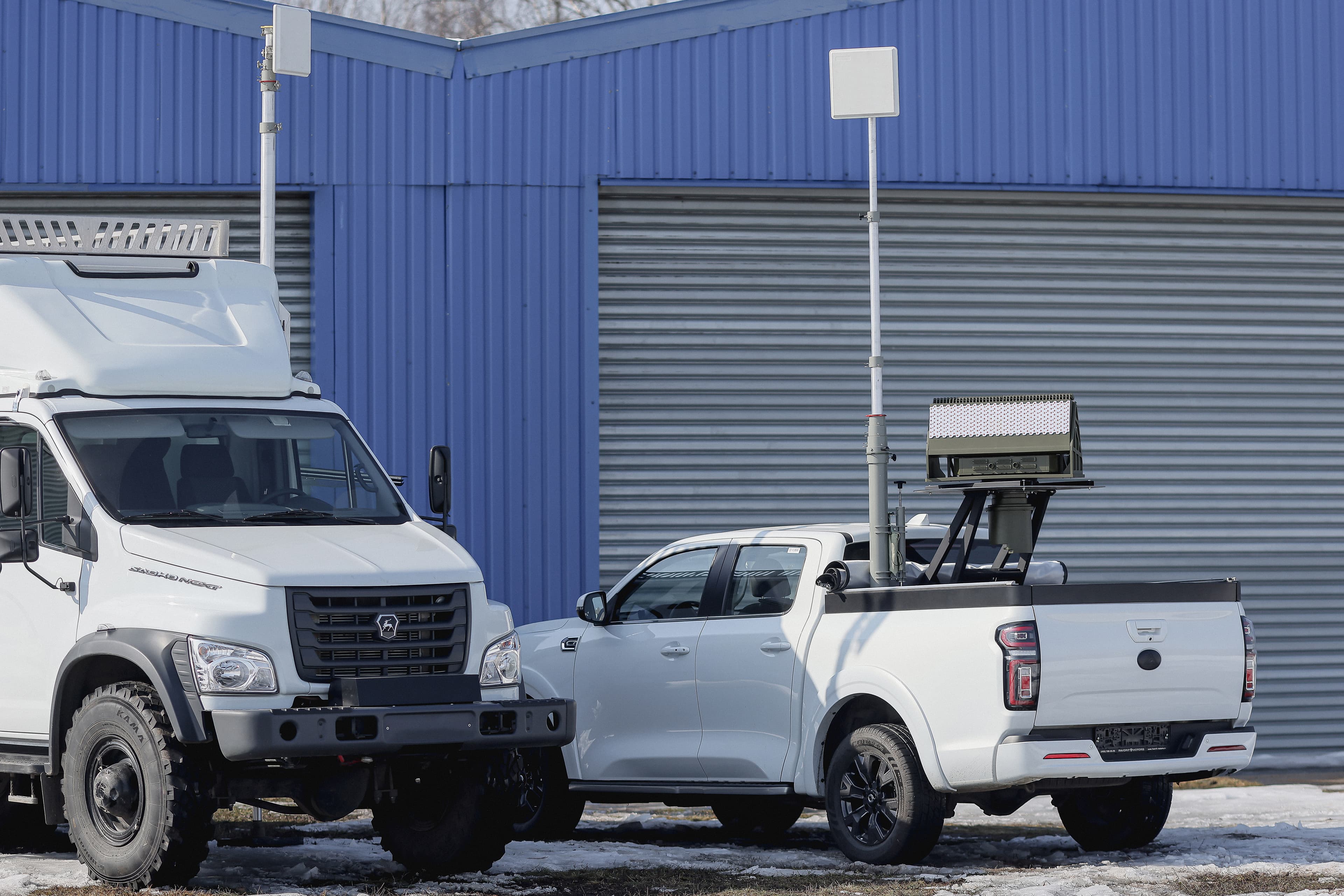

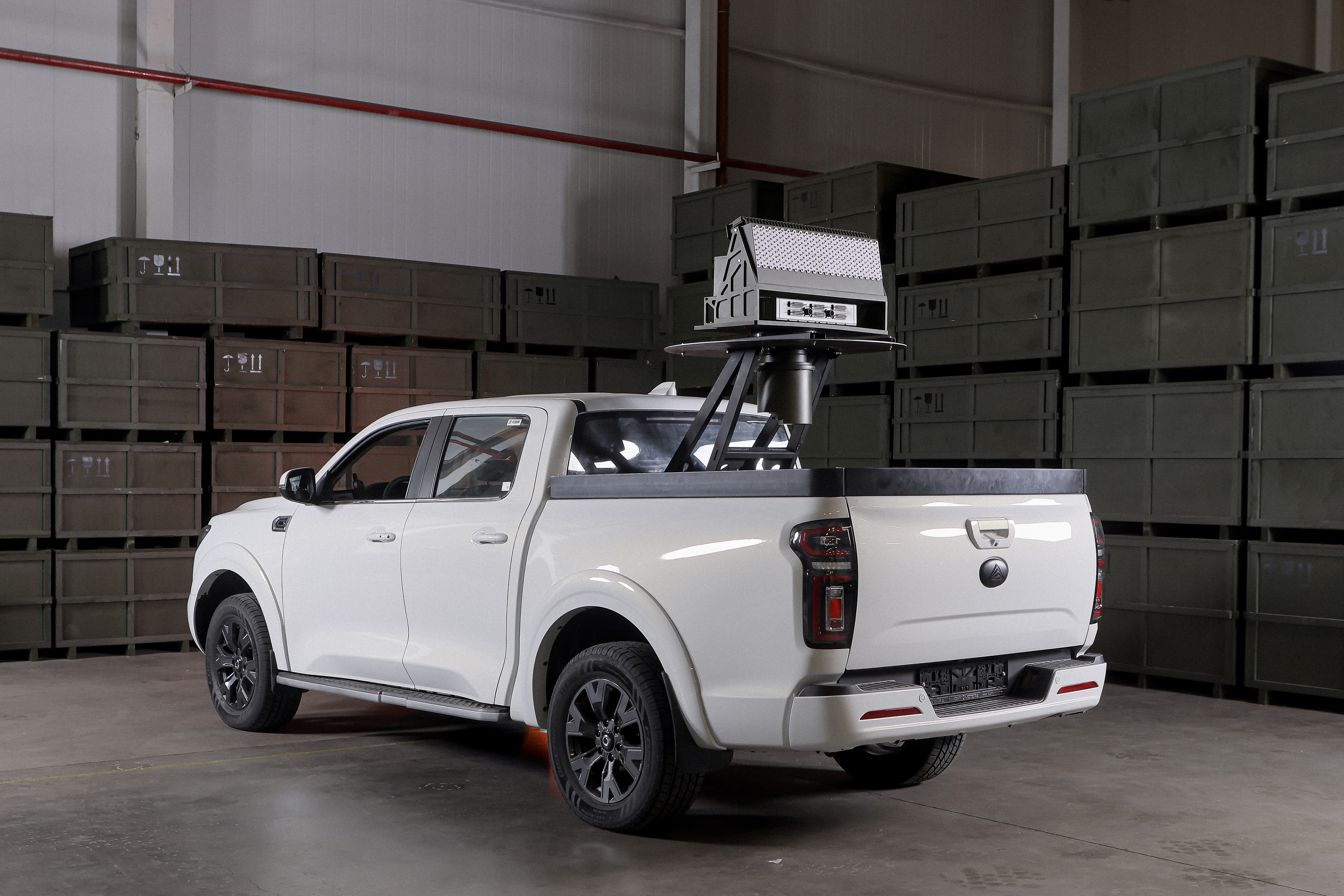

Mobile radar post

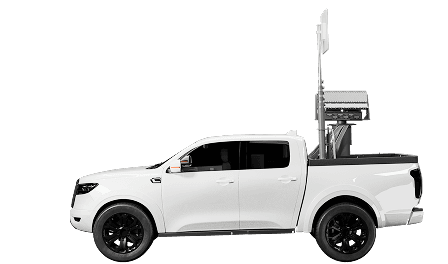

Mobile radar post on a pickup with radar «Panorama»
'Azimut' certified software system»
'Azimut' software system
The System allows several C-UASs to be unified into a single protection system.
- certified software system
- distributed open architecture
- high fault tolerance
- scalability
- integration into infrastructure
